Αρχική Σελίδα /Προϊόντα/Βιομηχανικός στεγνωτήρας περιστροφικών τύμπνων/Chemicals Processing Rotary Drum Dryer / Organic Compound Fertilizer Drying Machine For Customer From China

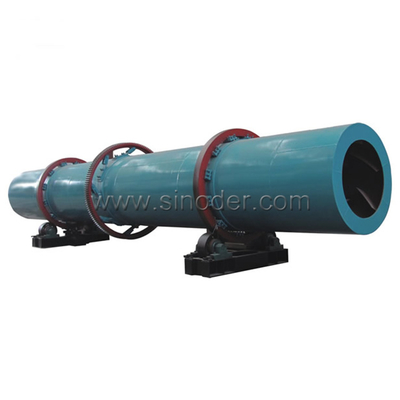

Chemicals Processing Rotary Drum Dryer / Organic Compound Fertilizer Drying Machine For Customer From China

1 Set
MOQ
$90,000.00(1 - 9 Sets) $2,000.00(>=10 Sets)
τιμή
Chemicals Processing Rotary Drum Dryer / Organic Compound Fertilizer Drying Machine For Customer From China
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Type: Drum Drying Equipment
Application: Chemicals Processing, Industrial raw materials
Condition: New
Voltage: 220-380V
Power: 15kw
Dimension(L*W*H): 1200*10000
Key Selling Points: Energy saving
Warranty: 1 Year
Weight (KG): 1000
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction works , Food & Beverage Shops, Other
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Not Available
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Gearbox
Weight: 14.5t
Model: 1.2*10-14
Diameter(MM): 1200
Length(M): 10-14
Thickness(MM): 10
Volume(M3): 11.3-15.8
Fill Rate: 8-20%
Material: Heat-resistant steel;stainless steel; cast steel; carbon steel,etc
Rotate speed: 3-8 r/min
Corollary equipment: Conveyor equipment, hot blast stove, dust removal equipment
After-sales Service Provided: Field installation, commissioning and training
After Warranty Service: Online support
Local Service Location: None
Πιστοποίηση: ISO,CE
Βασικές πληροφορίες
Πιστοποίηση: ISO,CE
Model Number: 1.2*10-14
Πληρωμής & Αποστολής Όροι
Packaging Details: 1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. 2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic
Supply Ability: 1000 Set/Sets per Month
Περιγραφή προϊόντων

Product description

Rotary drum dryer/ organic compound fertilizer drying machine for india customer from China

Rotary drum dryer can dry many different raw materials contain moisture, such as sawdust, coal, coal slurry, slag, fertilizer, sand, chicken manure, cassawa and sugar bagasse, etc. They are widely used in building materials, metallurgy, and chemical industry.

Rotary drum dryer cosists of rotary body, lifting blade, driving device, supporting device, sealing ring. Heating source can be coal, charcoal, wood, gas, electricity, oil, wind power, etc.

Working principle

Wet materials are sent to dryer by conveyor belt or elevator, or in order to feed materials continuously and smoothly, you can add a feeder. When installation, the drum need have a 3-5º inclination, to ensure the materials move from the upper part to lower part smoothly. In upper part, we can build up a brick heating stove or coal-gas producer, make the hot air enter into dryer, and materials and hot airs are contacted completely, due to constantly raised and shed materials, then wet materials are dried.

Main technical parameter

Model (mm)

Rotation speed (r/min)

Feeding temperature (degree)

Power (kw)

Capacity(t/h)

Weight (t)

600x6000

3-8

<=700

3

0.5-1.5

2.9

800x8000

3-8

<=700

4

0.8-2.0

3.5

800x10000

3-8

<=700

4

0.8-2.5

4.5

1000x10000

3-8

<=700

5.5

1.0-3.5

5.6

1200x10000

3-8

<=700

7.5

1.8-5

14.5

1200x12000

3-8

<=700

11

2-6

14.8

1500x12000

2-6

<=800

15

3.5-9

17.8

1800x12000

2-6

<=800

18

5-12

25

2200x12000

1.5-6

<=800

18.5

6-15

33

2200x18000

1.5-6

<=800

22

10-18

53.8

2200x20000

1.5-6

<=800

30

12-20

56

2400x20000

1.5-5

<=800

37

18-30

60

3000x20000

1.5-5

<=800

55

25-35

78

3000x25000

1.5-5

<=800

75

32-40

104.9

Paking and shipping
