Χαρακτηριστικά

Προδιαγραφές

Condition: New

Raw Material Processed: Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton Stalks, Animal Feed

Pellet Diameter (mm): 1.5 - 12

Output (kg/h): 50 - 1000 kg/h

Voltage: 380/400/415V Customized

Dimension(L*W*H): 2270*620*1260mm/Different on different model

Motor Power (Kw): 5.5

Power (kW): 30

Warranty: 1 Year

Applicable Industries: Food & Beverage Factory, Farms, Wood Pellet Mill, Aquatic and Animal Feed

Key Selling Points: Easy to Operate

Weight (KG): 250 KG

Marketing Type: Hot Product 2019

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Bearing, Gear, PLC, Gearbox

Power options: Diesel engine or CE motor

Working theory: Roller rotating on the flat plate

Wearing parts: Roller, flat plate, roller axle, bearings

Raw material: Sawdust

Application: Make Biomass Pellets

Capacity: 30-500kg/hour for Pellet Machine

Pellet size: 2.5-10mm

Usage: Family Use/Farm Use/Biomass Industry

Weight: 80-740KG/Different on different model

Power: 2.2-30kw/CE Motor, 7.5-55hp/Diesel Engine

Βασικές πληροφορίες

Πληρωμής & Αποστολής Όροι

Packaging Details: Standard Export Package for Mini Aquatic Animal Feed Wood Pellet Mill Machine

Περιγραφή προϊόντων

Product Description

Biomass Raw Material:

Pelletizing is the process of making waste materials into solid fuel. The objects are used for burning purposes. Wood pellet can be made from any type of agro-forestry waste: groundnut shell, sugarcane bio-gases, caster shells/stalk, saw dust, coffee husk, paddy straw, sunflower stalk, cotton stalks, tobacco waste mustard stalk, jute waste, bamboo dust, tea waste, wheat straw, palm husk, soybeans husk, coir pitch barks/straws, rice husks, forestry wastes, wood chips and many other agro wastes.

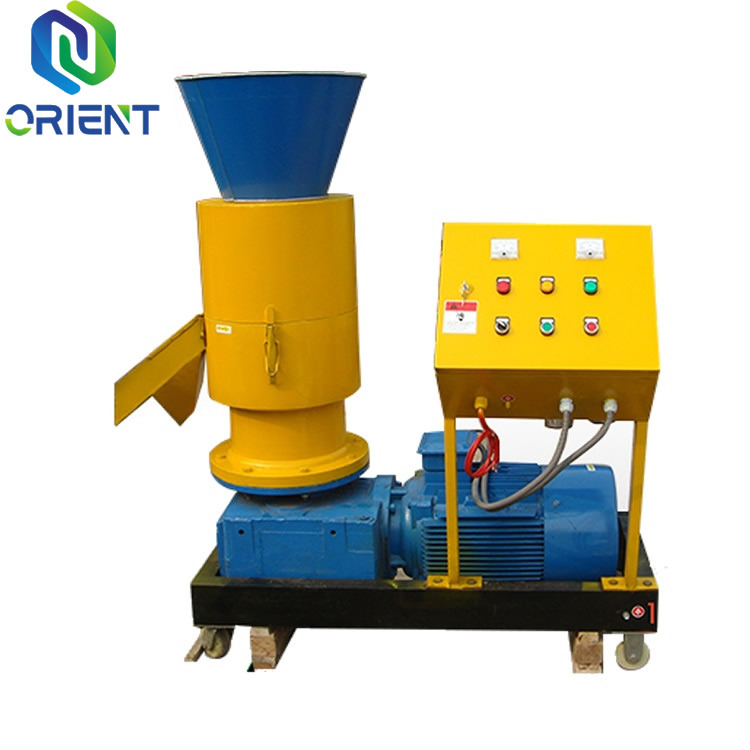

Mini Aquatic Animal Feed Wood Pellet Mill Machine

MZLP-Series Flat Die Pellet Machine / Pellet Mill / Wood Pellet Press / Wood Pelletizer is designed for the family or farm need with lower output which includes MZLP-200 with output 50-100kg/1hour; MZLP-300 with output 150-250kg/1hour; and MZLP-400 with output 250-350kg/1hour. It can equipped with motor or diesel engine.

Small Complete Wood Pellet Production Line

0.1-1Ton/1Hour Portable Biomass Pellet Line is developed to meet with the family and small farm use which is made up of Wood Chipping Machine, Hammer Mill, Air-Current Dryer / Small Rotary Drum Dryer, Mixer, Screw Conveyor, Conditioner, Flat Die Pellet Machine, Grade Sieve and Cooler, small Semi-auto Packing Machine. Any of the process can be run independently, doesn’t affect the overall equipment effectiveness, and the user can equip the whole line freely base on the different raw material and the space.

Pellet Mill Machine

Technical Parameter of Mini Aquatic Animal Feed Wood Pellet Mill Machine

Model	Technical Parameter	Power (Kw/Hp)	Packing Dimension(mm)	Net/Gross Weight
MZLP-200 Pellet Machine	Carbon steel, movable style, the capacity is 55-100kg/1h to make biomass pellet with diameter 6mm	5.5/15	10008001000	250/300Kg
MZLP-300 Pellet Machine	Carbon steel, movable style, the capacity is 150-250kg/1h to make biomass pellet with diameter 6mm	15/30	120010001200	480/530Kg
MZLP-400 Pellet Machine	Carbon steel, movable style, the capacity is 250-350kg/1h to make biomass pellet with diameter 6mm	22/40	120011001250	850/900Kg
Other

Detailed Image

Mini Small Flat Die Pellet Machine

Features

Mini Flat Die Pellet Machine

1. The mechanical strength of MZLP-Series Mini Pellet Mill is 3-4 times than our domestic KL-Series / 9PK-Series which are mainly used to make animal feedstuff, while our MZLP-Series Mini Pellet Mill is designed specially to make biomass/wood pellet.

2. The life of the roller and template on MZLP-Series Mini Pellet Mill can get to 300-500 hours which is 2 times longer comparing with the domestic manufactures. The raw material of our spare parts is from 20CrMnTi or 40Cr.

On the thickness of Template for MZLP-Series Mini Pellet Mill:

MZLP-200/260 is 25-40mm; MZLP-300/400 is 30-50mm.

Of course, the Template with diameter 8mm is thicker than 6mm.

The thickness of the Template will affect the quality of the pellet. When the Template is thicker, it is equal that the pelletizing process is longer, so the density of pellet will be higher, and the appearance of pellet will be smoother. And the life of the Template will be longer.

3. The Electricity Consumption of MZLP-Series Mini Pellet Mill will save 30-50% electricity.

Our Company

- Established in 1997, exported the first set of Wood Pellet Machine to Korea in 2000; 16 years experience in the biomass pelletizing field.

- Adwarded High-Tech Enterprise of Shandong Province.

-Covering > 170,000 square meters (260 acres), and has 97,000 square meters modern production workshop.

- Hold over 25 national unique patents

- Certificated by CE, ISO9001, SGS

- 60% market share in the domestics; exported over 50 countries.

- Specialized in the turn-key project in the biomass pelletizing field from Debarking - Chipping - Crushing - Drying - Pelletizing - Cooling and Sieve - Packing - Dedusting - Heating Supplying.

- Branches Companies as following: Jining Tiannong Machine Co., Ltd.

Jining Naijiu Mould Co., Ltd
Xuzhou Orient Industry Co., Ltd.
Weishan Hengjie Furnace Technology Co.
Weishan Tianong Science and Technology Co.
T.Y.A. Robot Science and Technology Co.
ToPellet Machinery GmbH
